The Stone Paver Patio Project

In the summer of 2020 I built a multi-level stone paver patio from scratch. No contractor, no kit: some research, a rented plate compactor, and a lot of weekends.

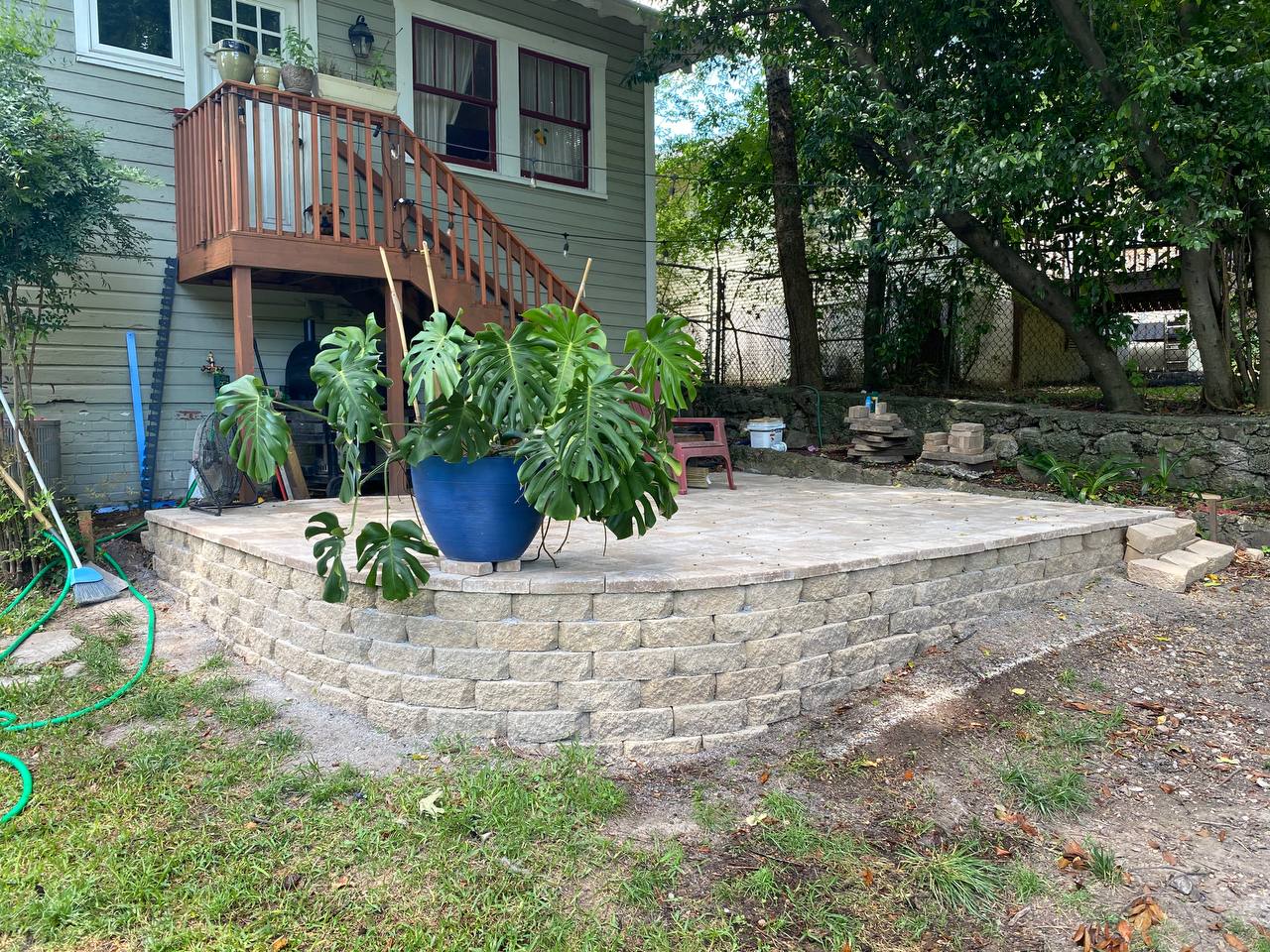

Final completed stone paver patio with a large Monstera plant

The finished patio, now home to an increasingly large Monstera.

The site started as grass and a slope running toward the house. First I cleared the area and graded it so water would drain away from the foundation.

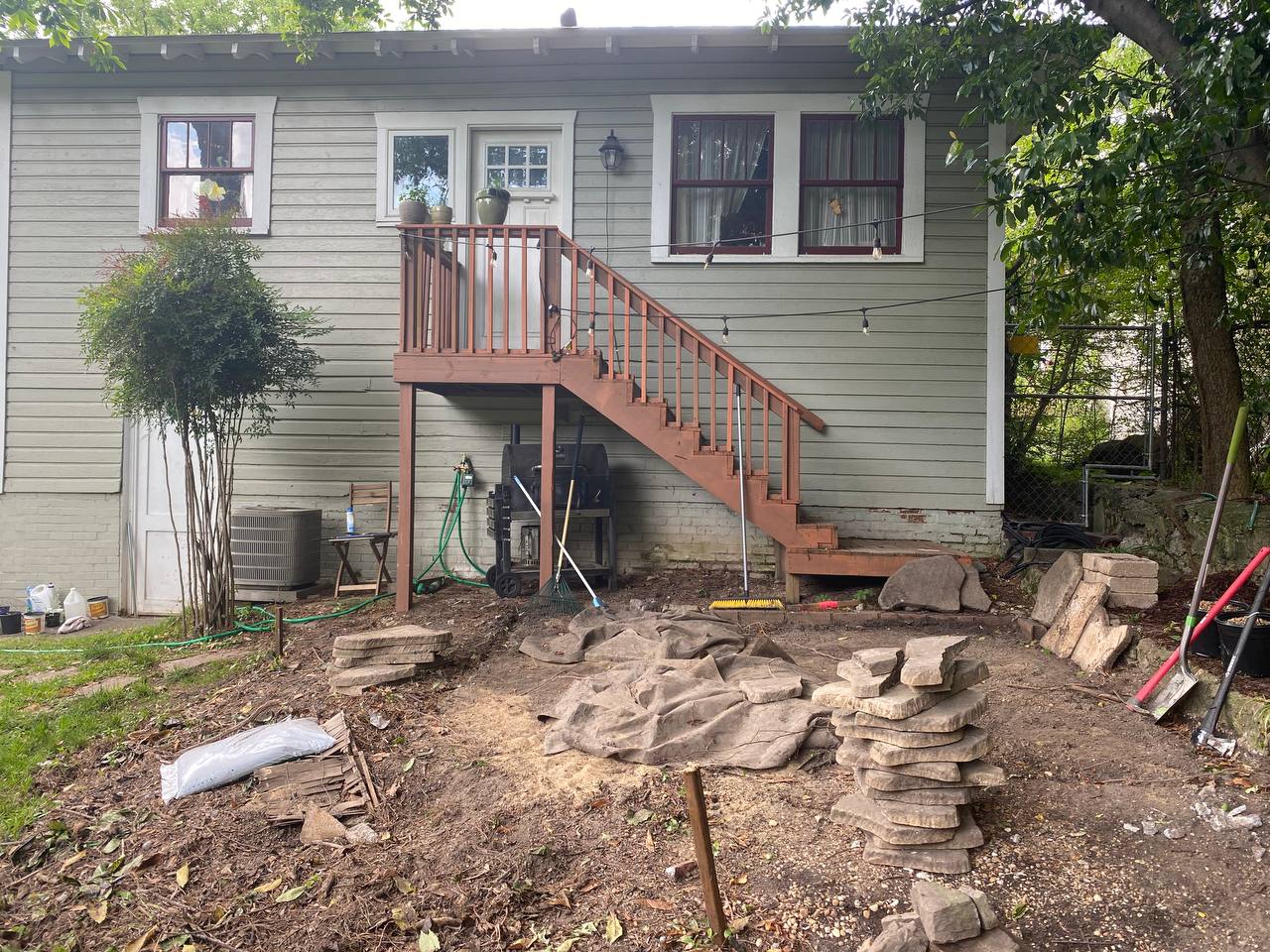

Original raw site before construction

The starting point: site clearing and initial grading.

Next came the retaining wall, built from heavy masonry block to hold up the raised section. I backfilled it with crushed stone and built the base in layers, tamping each one so it wouldn't settle later.

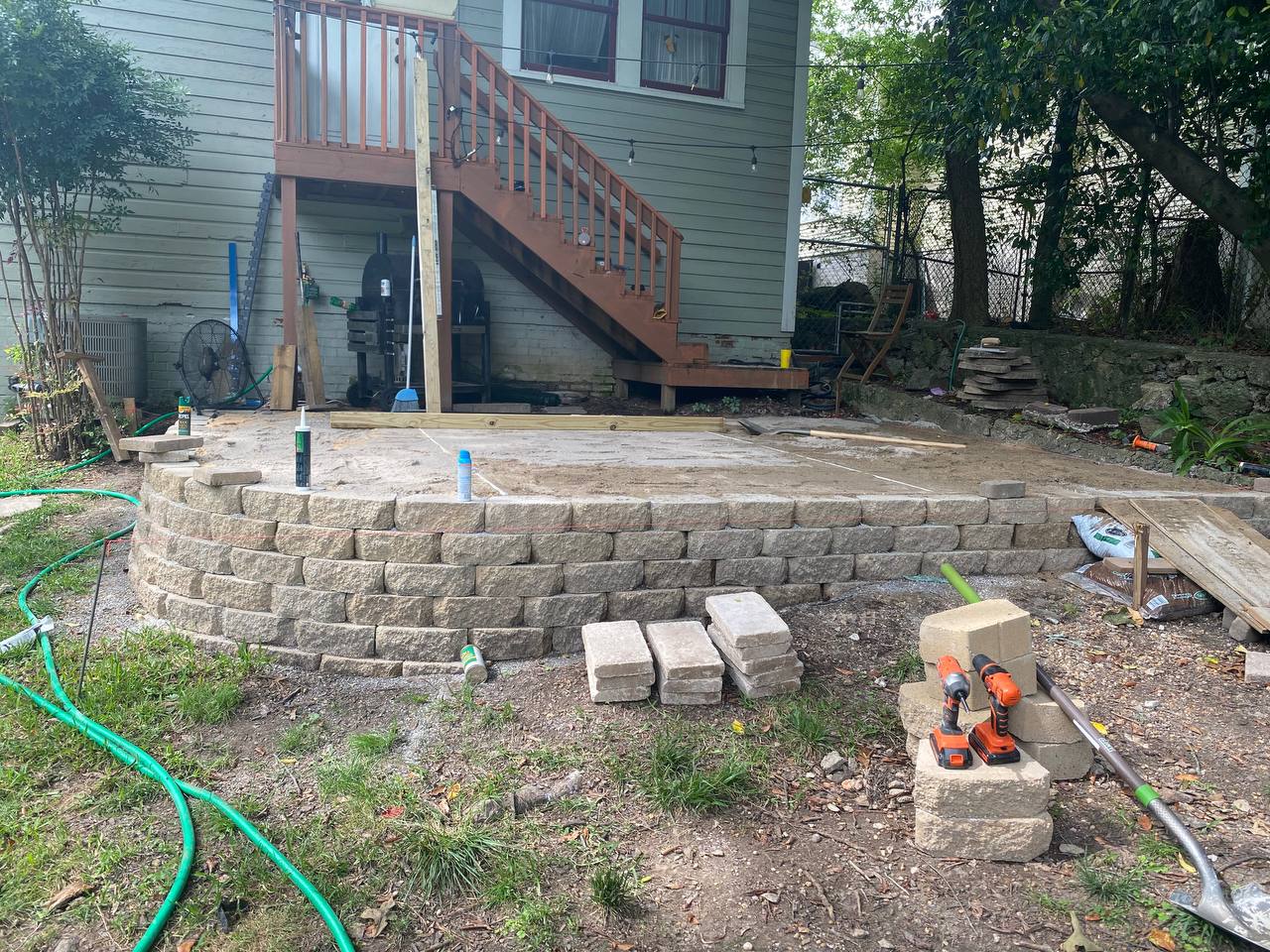

Construction progress showing the retaining wall

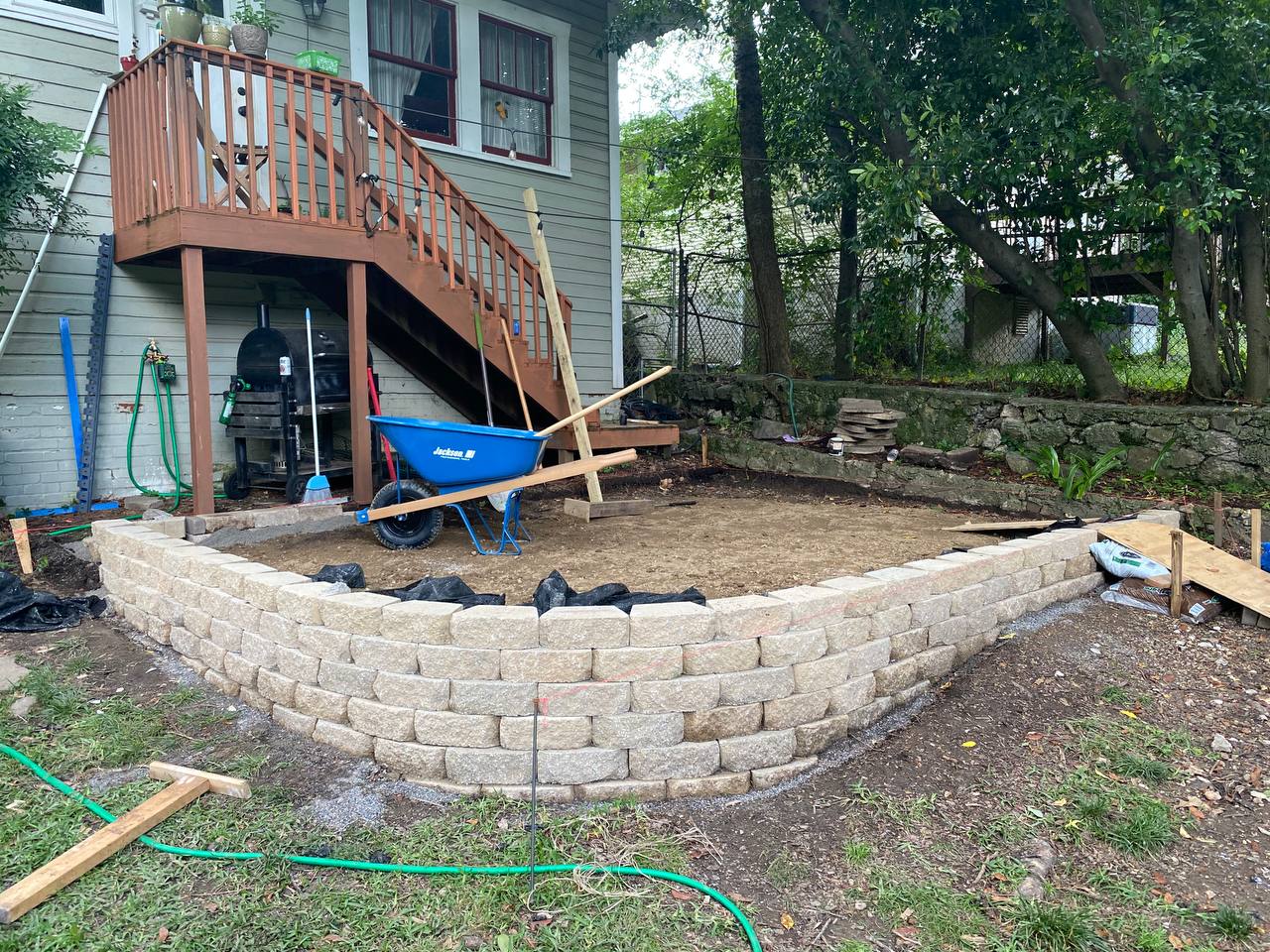

Construction progress showing the completed wall and base

This stage ran almost entirely on hand tools: a level, a plate compactor, a rubber mallet, and patience. I checked level constantly, because one paver set even slightly high throws off everything after it.

Tools used for the patio project laid out on the sand base

Mostly leveling and tamping gear.

It took most of a summer. The patio has held up since: still level, still draining the right way, and without a crack.
